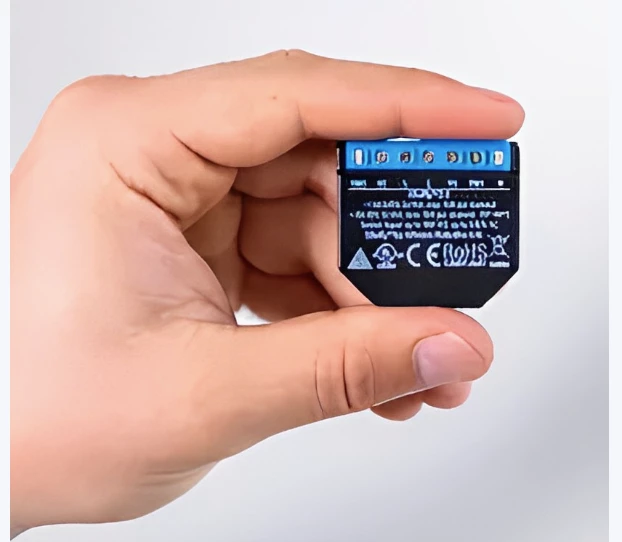

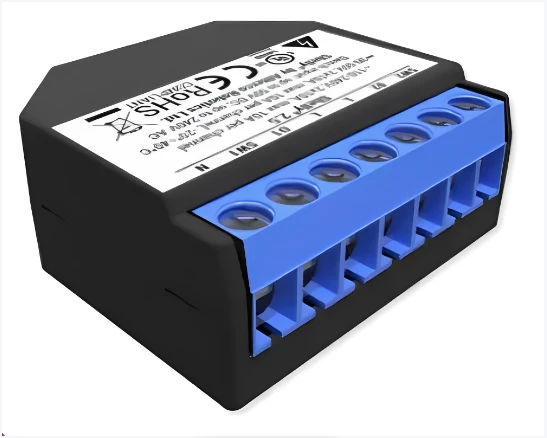

Shelly 2.5 UL WiFi 2-Channel Relay & Roller Shutter With Power Metering

SHELLY-25UL is a compact WiFi-operated dual-independent smart relay and two switch inputs for a device or roller control.  Shelly 2.5 UL can control two different loads/lights and can be used for open/close/up/down for shades or for motor control with variable positioning.  Shelly 2.5 can be powered by a wide range of low or high voltages.

The switch (dry contact) inputs can be used to monitor a contact closure, or connected to a switch to control the relay outputs.

Shelly 2.5 UL has a built-in microprocessor and web server to allow it to be controlled and monitored by a smartphone, tablet, or home automation system.  It can be used on its own with free apps using the Shelly Cloud or integrated with a smart home system.

The built-in processor allows it to support scenes when combined with other Shelly devices, as well as built-in scheduling based on time of day or sunrise/sunset.

Shelly devices work with Google Home and Alexa voice assistants.

Shelly works on its own or with MQTT, SmartThings, Home Assistant, HomeSeer, Homey, Hubitat, OpenHAB, and REST integration.

SHELLY-25UL WiFi 2-Channel Relay & Roller Shutter Features:

• Compact smart dual relays independently controlled
• Switch / Button inputs
• Power options:24-50 VDC or 110-240VAC
• Supports incandescent, resistive, and capacitive loads
• Inductive loads such as LED drivers, transformers, and fans require RC Snubber (sold separately) to protect the relay contacts
• Max load AC 10A per channel, 20A total
• Max load DC 10A per channel, 20A total
• WiFi 802.11 b/g/n 2.4GHZ
• Bluetooth
• Built-in web server
• MQTT support
• Schedules: 12 with 5 URLs per hook
• URL actions: 20
• Scripting: no
• Operating temp -20C to 40C
• Dimensions 36 x 39 x 17mm (HxWxD)
• cULus listed

SHELLY-25UL WiFi 2-Channel Relay & Roller Shutter Specifications:

• Size (HxWxD): 36x39x17 ±0.5 mm / 1.42×1.54×0.67 ±0.02 in
• Mounting: Wall Console
• Screw terminals max torque: 0.4 Nm / 3.5 lb
• Conductor cross-section: 0.5 to 1.5 mm² / 20 to 16 AWG
• Conductor stripped length: 5 to 6 mm / 0.20 to 0.24 in
• Shell material: Plastic
• Color: Black
• Ambient temperature: -20 °C to 40 °C / -5 °F to 105 °F
• Humidity: 30 % to 70 % RH
• Max. altitude: 2000 m / 6562 ft
• Power supply: 110 – 240 VAC / 30 – 50 VDC
• Power consumption: < 1 W
• Max switching voltage AC: 240 V
• Max switching voltage DC: 50 V
• Max switching current AC: 10 A (per channel), 20 A (total)
• Temperature sensor: Yes
• Voltmeter (AC): Yes
• Ammeter (AC): Yes
• RF band: 2401 – 2495 MHz
• Max. RF power: <20 dBm
• Wi-Fi protocol: 802.11 b/g/n
• Wi-Fi Range: Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors
• (Depends on local conditions)
• CPU: ESP8266
• Flash: 2 MB
• Schedules: 20
• Webhooks (URL actions): 12 with 5 URLs per hook
• Scripting: No
• MQTT: Yes
