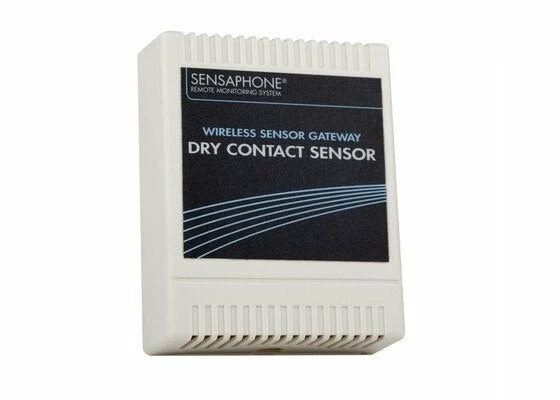

Sensaphone FGD-WSG30-DRY WSG Wireless Dry Contact Sensor

Sensaphone WSG30 Wireless Dry Contact Sensor N/O, N/C Monitoring

The WSG Wireless Dry Contact sensor is designed to work exclusively with the Sensaphone WSG30. This sensor includes a built-in radio transmitter and input terminals for connecting to any normally open or normally closed output. The sensor comes with two AA alkaline batteries which will power the sensor for up to two years. An optional plug-in power supply is also available. The batteries then become a backup if main AC power fails.

* Use of this device with solid-state outputs is not recommended

Sensaphone WSG30 Wireless Dry Contact Sensor Specifications

• Operating Temperature Range: 32° to 122°F (0° to 50°C)
• Operating Humidity Range: 095%
• Input Characteristics: 3MO To 3V
• Transmit Power Output: 100mW (20dBm)
• Range: Up to 300FT (90m)
• Power Requirements: (2) AA Batteries / 5VDC Power Supply (Router Mode)
• Wireless Technology: ISM 2.4GHz, 100 mW (20dBm)
• Housing: White plastic
• Size: 3.1 x 3.8 x 1.1 (7.9cm x 9.8cm x 2.85cm)

Sensaphone WSG30 Wireless Dry Contact Sensor Includes

• 1 x Sensaphone WSG Wireless Dry Contact Sensor
• 2 x AA Alkaline Batteries
• 1 x Mounting Kit

Sensaphone WSG30 Wireless Dry Contact Sensor Support and Downloads

• WSG Dry Contact Sensor Manual
• WSG-30 Cut Sheet
