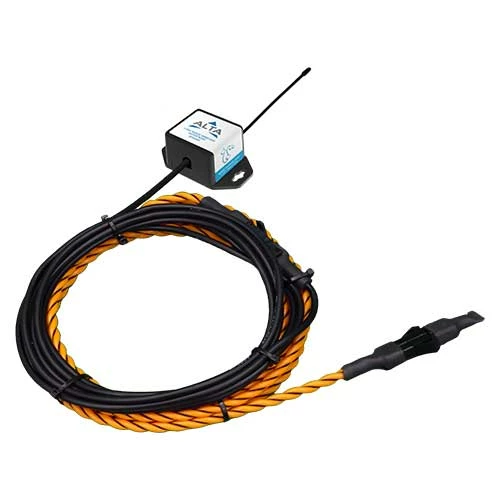

Monnit ALTA Wireless Water Rope Sensor – Coin Cell Powered, 900MHZ

Wireless sensor detects water leaks or spills along its conductive rope. Install anywhere water can ruin assets or endanger people, e.g., high-traffic areas, server rooms, apartments, or along foundations.

Monnit MNS2-9-W1-WS-WR Features

1,200+ foot range

12+ year battery life

80+ wireless sensors

Bank-level AES security

Up in 15 easy setup

Global ready (900, 920, 868 & 433 MHz)

Water Detect Rope Specifications

Material: PE + alloy lead

Pull Force Limit: 60kg

Fire Resistance: Second pressure plenum cable

Cable Diameter: 5.5mm

Core Resistance: 3ohm/100 meters

Maximum Exposed Temperature: 75°C (167°F)

Cable Length: 10 ft. (120 in.) included (expandable to 100 ft.)

Variation Specifications

Weight: 1.06 oz. (30 g) with 10 ft. (3.05 m) rope

ALTA Coin Cell Specifications

Battery Type: Replaceable 3.0V (CR2032) Coin Cell Battery

Dimension: 2.0 in x 1.125 in x 0.875 in

Max Operating Temperature: -7°C to +60°C ( 20°F to +140°F )

Optimal Battery Operating Temperature (Coin Cell): +10°C to +50°C ( +50°F to +122°F )

Supply Voltage: 2.0 – 3.8 VDC

Battery Life: At 1 hour heartbeat setting, coin cell battery will last up to 2 years.

Enclosure Technology: Monnit PinchPower™ Wireless Sensor Enclosures

Enclosure Material: ABS

ALTA 900 MHz Specifications

Operating Frequency: 900 MHz Operating Frequency

Certifications: Complies with Part 15 of the FCC Rules. (FCC ID: ZTL-G2SC1)Complies with Industry Canada standards. (IC: 9794A-G2SC1)

Device Range: Device Range Up to 1,200 ft. non-line-of-sight, wireless device range*

Security: Encrypt-RF® (Diffie-Hellman Key Exchange + AES-128 CBC)
