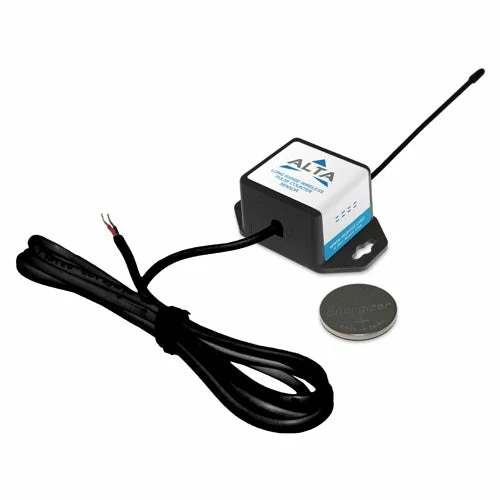

Monnit ALTA Wireless Pulse Counters (Single Input) – Coin Cell Powered, 900MHZ

Monnit wireless pulse counters can be integrated with a dry contact or mechanical switch to count the number of actuations occurring within a given time frame.

Monnit MNS2-9-W1-PC-01 Features

1,200+ foot range

12+ year battery life

80+ wireless sensors

Bank-level AES security

Up in 15 easy setup

Global ready (900, 920, 868 & 433 MHz)

Pulse Counter Specifications

Maximum Count: 4294967296 (32 bit number)

Input Voltage: 0 to 15 Volts DC

Detection Wires: High Impedance (2-Wire), 3 ft. length

Counter Operation: Positive and / or Negative Edge Pulses

Compatibility: Open Collector NPN Switches (Passive) Mechanical Switches (Passive) 0-15V Driven Source (Active)

Variation Specifications

Security: Encrypt-RF® (256-bit key exchange and AES-128 CTR)

Weight: 0.7 oz. (19.84 g)

ALTA Coin Cell Specifications

Battery Type: Replaceable 3.0V (CR2032) Coin Cell Battery

Dimension: 2.0 in x 1.125 in x 0.875 in

Max Operating Temperature: -7°C to +60°C ( 20°F to +140°F )

Optimal Battery Operating Temperature (Coin Cell): +10°C to +50°C ( +50°F to +122°F )

Supply Voltage: 2.0 – 3.8 VDC

Battery Life: At 1 hour heartbeat setting, coin cell battery will last up to 2 years. **

Enclosure Technology: Monnit PinchPower™ Wireless Sensor Enclosures

Enclosure Material: ABS

ALTA 900 MHz Specifications

Operating Frequency: 900 MHz Operating Frequency

Certifications: Complies with Part 15 of the FCC Rules. (FCC ID: ZTL-G2SC1)Complies with Industry Canada standards. (IC: 9794A-G2SC1)

Device Range: Device Range Up to 1,200 ft. non-line-of-sight, wireless device range*

Security: Encrypt-RF® (Diffie-Hellman Key Exchange + AES-128 CBC)
