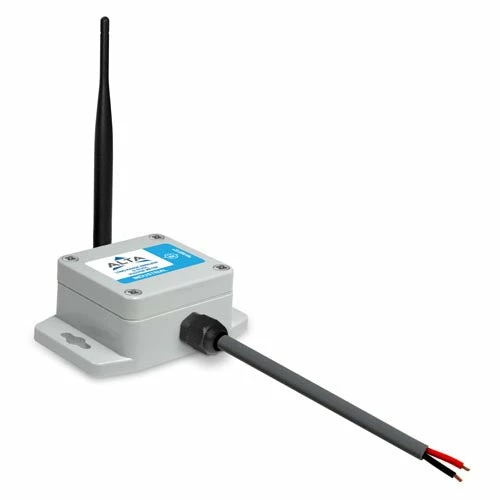

Monnit ALTA Industrial Wireless Voltage Meters – 0-10 VDC, 900MHZ

Monnit wireless voltage meters are capable of measuring the voltage off another device, battery, or sensor. This sensor is capable of measuring voltage up to 10 VDC by connecting the leads on the sensor to the positive and ground terminals of the device being measured.
Examples of interfacing devices include, but are not limited to: Strain Gauge, Pressure Transducer, RTD, Thermistor, or Thermocouple, Piezo Electric sensors, Photoresistor, Industrial Accelerometer, any kind of variable resistor, any kind of sensor that outputs a voltage, etc. If the device being measured is passive, the user must supply their own excitation voltage, as the Monnit sensor is really just a “voltage observer”. Cannot be used for AC voltage measurement.

Monnit MNS2-9-IN-VM-010 Features

1,200+ foot range

12+ year battery life

80+ wireless sensors

Bank-level AES security

Up in 15 easy setup

Global ready (900, 920, 868 & 433 MHz)

Voltage Meter Specifications

Voltage Range: 0 – 10 Volts DC

Resolution: ~5 mV

User Calibrated Accuracy: +/- .5% FS

Open Circuit Voltage: ~0.000 Volts

Maximum Rated Input Voltage: 20 Volts

Lead Wire Length: 2 Wires, 1 ft. ( 12 in.), Red (+), Black (-), 18 AWG (Custom lengths available upon request)

Voltage Resolution: 0.01 VDC

Accuracy @ 25°C: @1V or above: +/- 1% (0.5% typical) @500mV: +/- 2% typical @250mV: +/- 4% typical @150mV: +/- 7% typical

Minimum Voltage Detected: 150mV

Variation Specifications

UL Rating: UL Listed to UL508-4x specifications (File E194432)

Security: Encrypt-RF® (256-bit key exchange and AES-128 CTR)

Weight: 4.5 oz. (128 g)

ALTA Industrial Specifications

Supply Voltage: 2.0 – 3.8 VDC

Battery Type: Replaceable 3.6V, 1800mAH (single AA sized)

Battery Life: At 1 hour heartbeat setting, battery will last up to 10 years.**

Max Operating Temperature: -40° to 85°C (-40° to 185°F)

Optimal Battery Operating Temperature: +10°C to +50°C (+50°F to +122°F)

Solar Power Option: 3.0 VDC Solar Panel 600 mAH Rechargeable Battery (>2000 Charge Cycles – 80% of Initial Capacity)Charging Temperature Range: 0° to 45°C (32° to 113°F) Max Temperature Range: -20° to 60°C (-4° to 140°F)

Enclosure Material: IP65, NEMA 4X, CE rated, sealed, weatherproof enclosure

UL Rating: UL Listed to UL508-4x specifications (File E194432)

Dimension: 3.7 in x 2.32 in x 1.38 in

ALTA 900 MHz Specifications

Operating Frequency: 900 MHz Operating Frequency

Certifications: Complies with Part 15 of the FCC Rules. (FCC ID: ZTL-G2SC1)Complies with Industry Canada standards. (IC: 9794A-G2SC1)

Device Range: Device Range Up to 1,200 ft. non-line-of-sight, wireless device range*

Security: Encrypt-RF® (Diffie-Hellman Key Exchange + AES-128 CBC)
