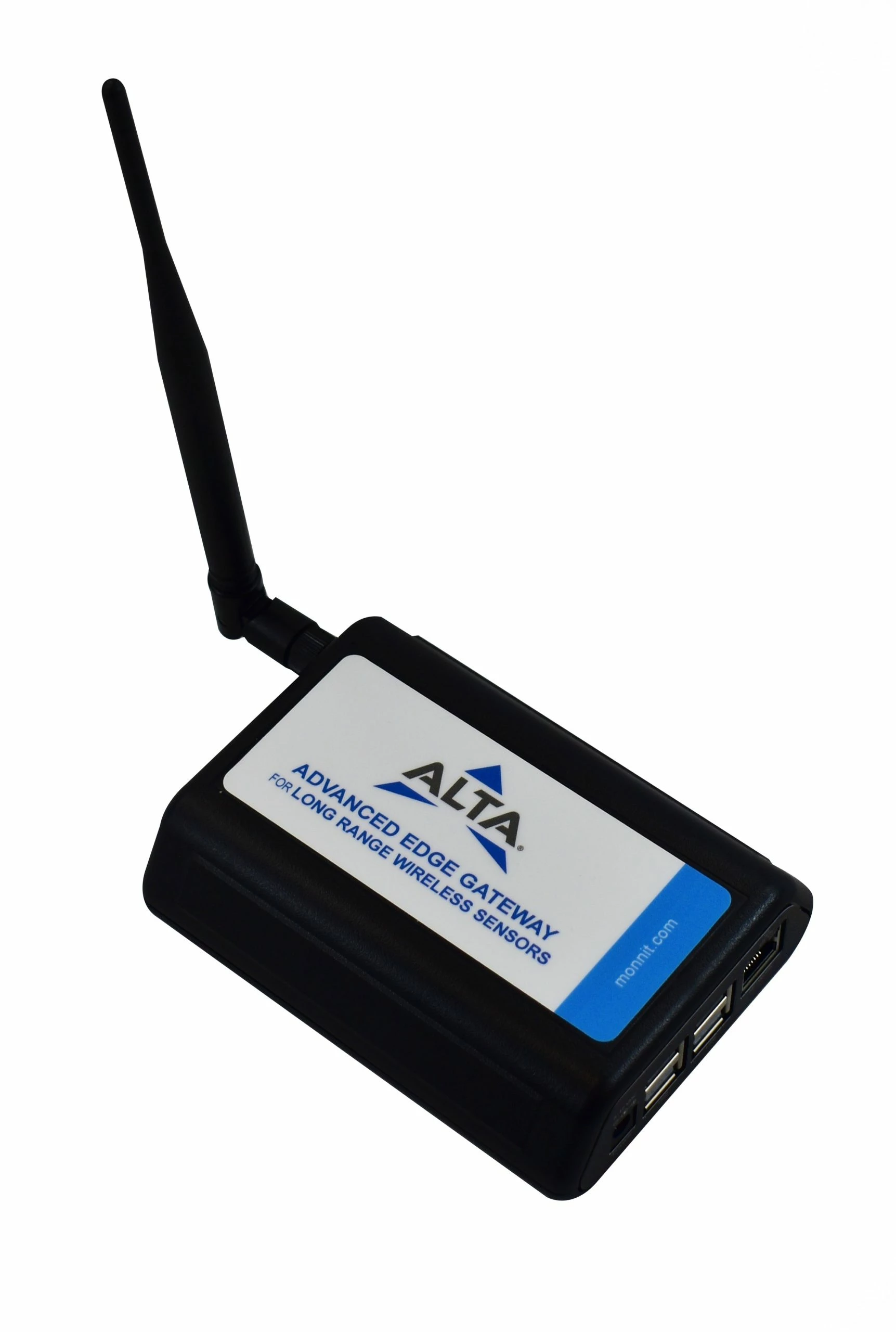

Monnit ALTA Advanced Edge Gateway W/ MQTTS

Monnit’s Edge Gateways allow your Monnit Wireless Sensors to communicate directly to your chosen MQTT broker. Local configuration management of your wireless sensor network and MQTT broker configurations make it simple to gather data directly to your data store. A perfect solution for commercial locations where there is an active internet connection.

Monnit MNG2-9-EDG-CCE Features

1,200+ foot range

12+ year battery life

80+ wireless sensors

Bank-level AES security

Up in 15 easy setup

Global ready (900, 920, 868 & 433 MHz)

Advanced Edge Gateway Specifications

Hardware: CPU: Cortex-A53RAM: 1 GB LPDDR2 SDRAMDisk: 16 GBOperating System: Linux

Input Power: 5.0 VDC @ 2.5 A

LED Lights: Connectivity, Power, Cloud Services, Network Status

Dimension: 5.004 x 3.8 x 1.51 in.

Weight: 7 ounces

Operating Temperature: 0 to 50°C (32° to 122°F)

Maximum Rated Input Voltage: 5.5 VDC

Antenna Type: Connector: RPSMAGain: 3.0 dBi

ALTA Commercial Gateway Specifications

Dimension: 5.004 x 3.8 x 1.51 in.

Enclosure Material: ABS

LED Lights: Internet Connectivity Status, Server Status, Sensor Network Status

Storage Temperature:: -20 to +60°C (-4 to 140°F)

Operating Temperature: +5 to +45°C (41 to 113°F)

ALTA 900 MHz Specifications

Operating Frequency: 900 MHz Operating Frequency

Certifications: Complies with Part 15 of the FCC Rules. (FCC ID: ZTL-G2SC1)Complies with Industry Canada standards. (IC: 9794A-G2SC1)

Device Range: Device Range Up to 1,200 ft. non-line-of-sight, wireless device range*

Security: Encrypt-RF® (Diffie-Hellman Key Exchange + AES-128 CBC)
