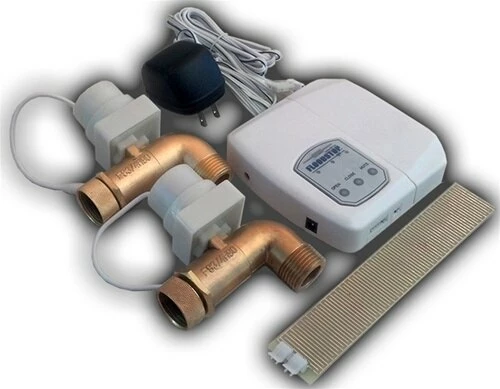

FloodStop Automatic Water Shut Off For Washing Machines 3/4″ 90 Degree

Floodstop FS3/4H90-V4 Automatic Water Shut Off for Washing Machines

Washing machines can be one of the most damaging appliances within a home. Flooding can happen at anytime due to ruptured/cracked fittings, or internal failure from clamps, valves, pumps, drains and failed switches. Even a small leak that goes undetected for many hours will cause extensive damage!

The FloodStop FS3/4H90-V4 hleps to prevent this water damage from occurring. Easy to install, the system automatically shuts off the water supply to both hot and cold water lines and sounds an alarm after detecting the leak, while leaving separate household appliances completely operational!

A built in normally open relay output can be used to tie Floodstop in to an alarm system or auto dialer for monitoring, or a smart home automation system.

Floodstop FS3/4H90-V4 Specifications

• Water sensor is placed on floor where water will flow during a leak
• Dual hot/cold valves automatically close when a leak is detected
• Built in alarm and low battery warning
• Dual Motorized 3/4″ Ball Valves with 90 degree fittings
• Rated 0-180 PSI. Max 250 PSI. Solid brass.
• Signal Outputs: 1 x Normally Open relay
• Sensor: 1.25 X 7.5 inch, double sided.
• Additional sensors may be added in series.
• Alarm: Beeping with Mute button

Floodstop FS3/4H90-V4 Includes

• 1 – Flood Stop Model FS3/4H90-V4 Device
• 1 – AC Adapter

Flood Stop model 34H90 – Manual
