Dakota Alert SBA-4K+ Solar Break Beam With Wireless Chime, Relay Output

The Dakota Alert SBA-4K+ provides a solar-powered wireless break beam sensor pair and receiver with a relay output, allowing it to connect to an alarm, external siren, strobe, or SpotProtect SwitchSpot.  The included wireless receiver has a Form C Relay and 12VDC output that both trigger when the break beam is triggered.

The Dakota Alert BBA-4K-PLUS is a wireless, infrared, solar-powered break beam (photo beam) sensor that mounts quickly and is easy to install since no wiring is required.  The break beam sensor is a point-to-point sensor that is intended to detect people and vehicles, or large animals depending on placement, while preventing the detection of small items like falling leaves or birds. For round-the-clock security, lithium-ion batteries are recharged by solar panels in the daytime.

The sensors can be easily mounted at high enough places to avoid the detection of dogs or other small animals. The sensors will not be activated by any motion outside of the monitored beams so you can protect the exact area you need.  Sensors can be up to 300 feet from each other.

The built-in transmitter sends a wireless signal up to 1 mile or 1.6 KM, when the beams are broken, to the provided wireless receiver.   The receiver will play your choice of 12 different alert tones and an indicator LED will also turn on at the same time.  The receiver simply plugs in to a wall outlet for power.

The included RE-4K-PLUS receiver has two form C relay outputs (normally open and normally closed) and one 12 VDC output. These outputs can be used to connect to external chimes, sirens, strobes, alarms, or other systems.

The sensors also have a standard micro-usb port that can be used to power them for indoor use or for initial charging before installation.  USB cable/charger not included.

This new kit replaces the previous model BBA-4K+ Kit.

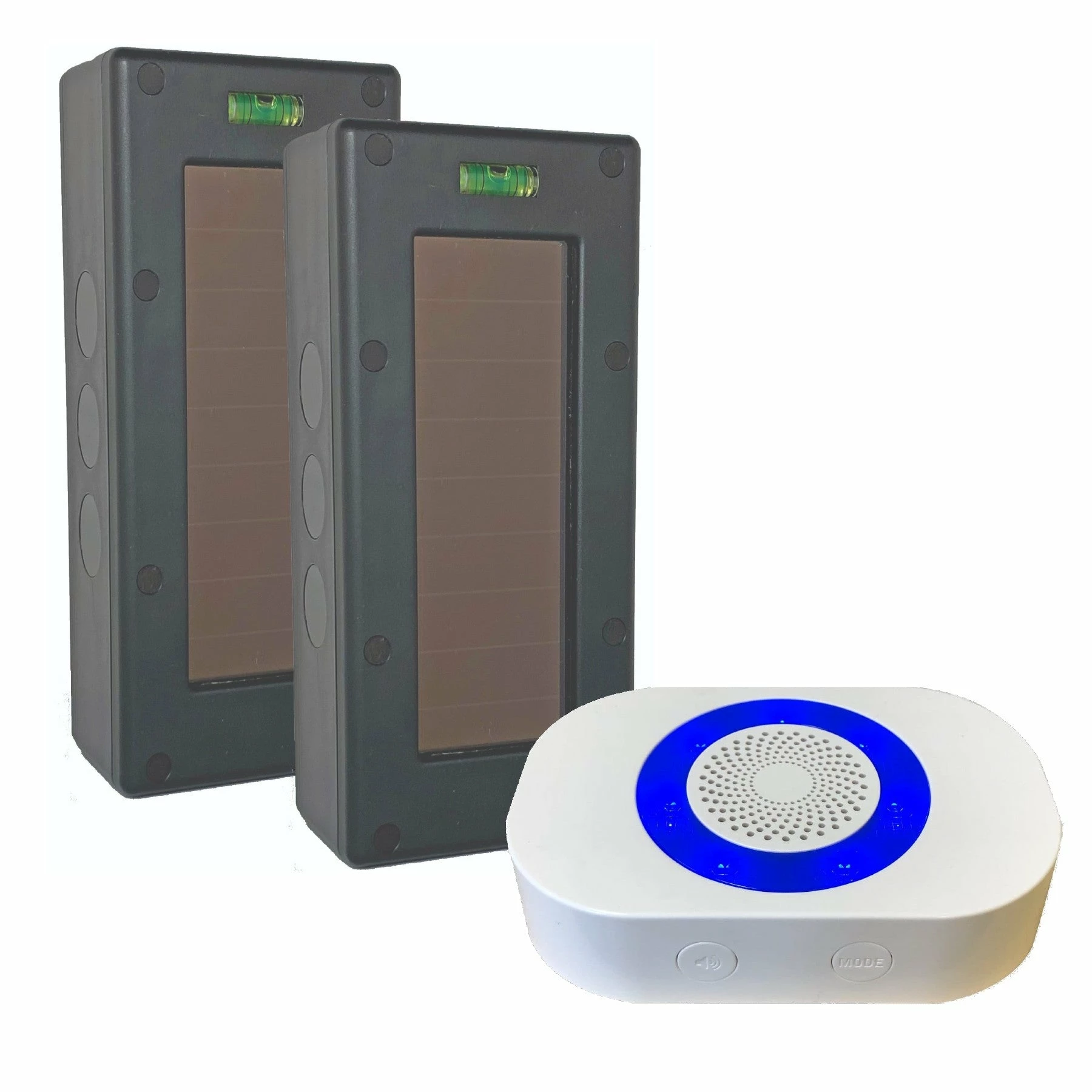

Dakota Alert SBA-4K+ Break Beam with Relay Chime Includes

• 1 x SBB4000 Beam Transmitter and Receiver Pair Rechargeable Batteries
• 1 x RE-4K-PLUS Chime receiver with dual relays and 12vdc output
• 1 x Power Adapter

NOTE: RELAY CONTACTS ARE RATED FOR LOW VOLTAGE DC ONLY.  DO NOT CONNECT HIGH VOLTAGE OR AC POWER TO THE OUTPUT RELAYS.

System Specifications

• Wireless Range (From sensors back to chime receiver) – up to 1 mile / 5280 feet
• Distance between sensors up to 300 feet
• Power Type (included) – Solar/Lithium Ion Rechargeable
• Optional power by micro-usb (power supply/cable not included)
• Detection Type – Infrared Break Beam
• Detection Range – max 300 feet between beam boxes
• Operating Temp. – (-)30F to 120F
• Relay outputs 2 form C rated up to 3A @ 30VDC
• Voltage output 12 VDC 400 mA maximum
